Graco Reactor 2 E-XP2i
A complete system for polyurea applications, the integrated series of Reactor proportioning systems combine an Electric Reactor and a diesel generator into one package. Complete turnkey models are also available with an integrated air compressor.
Look what the integrated system can do for you:
- Saves diesel fuel costs - on average of $7,000 annually*
- Improves productivity - with advanced, easy to use controls
- Eliminates guesswork - the system is totally engineered and tested by Graco
- Eliminates costly power issues - associated with shore power and low-cost generators
- Start spraying sooner - with an improved heating capacity
- Improves spray performance - with consistent pressure at the gun
- Saves time - it's easy to install into a spray rig since it's pre-wired with components already selected and installed
- Reduces fuel costs even more - the compact, portable design fits into a smaller trailer and a smaller trailer means a smaller truck
Smaller generator saves fuel costs
The integrated series of Reactor Proportioning Systems use the heat from the diesel engine to heat the A and B materials. Depending on the model, this eliminates or significantly reduces the need for electrical heaters - reducing your fuel costs. Here's how:
- The system pulls heat from the engine to heat the A and B materials
- Since there are no heaters (or only small heaters) on the proportioner, this reduces the electrical demands of the generator, allowing a smaller generator to be used
- The system's smaller 20kw generator uses less fuel than a standard 20kw generator uses less fuel than a standard 30 or 40kw generator
- You benefit from an annual fuel savings on average of $7,000*
Innovative design re-purposes wasted heat and saves energy
Graco's patent-pending dual coolant loop design ensures that the A and B materials are isolated from the engine coolant. This unique design also provides constant, steady temperature control for superior heating performance.
Advanced control technology
- Advanced Display Module (ADM) tracks, monitors, and saves project information
- Data can be downloaded onto a USB drive for further analysis
- Drum fluid levels - let you know if you are running low on material
- System events such as start-up and shutdown times
- Daily chemical output
- Saves key setup data such as temperatures and pressure setpoints for up to 24 chemical recipes
- Error messages explain the problem and provide common causes
- If chemicals are low, or if pressure imbalance occurs, you can program the system to shut down automatically

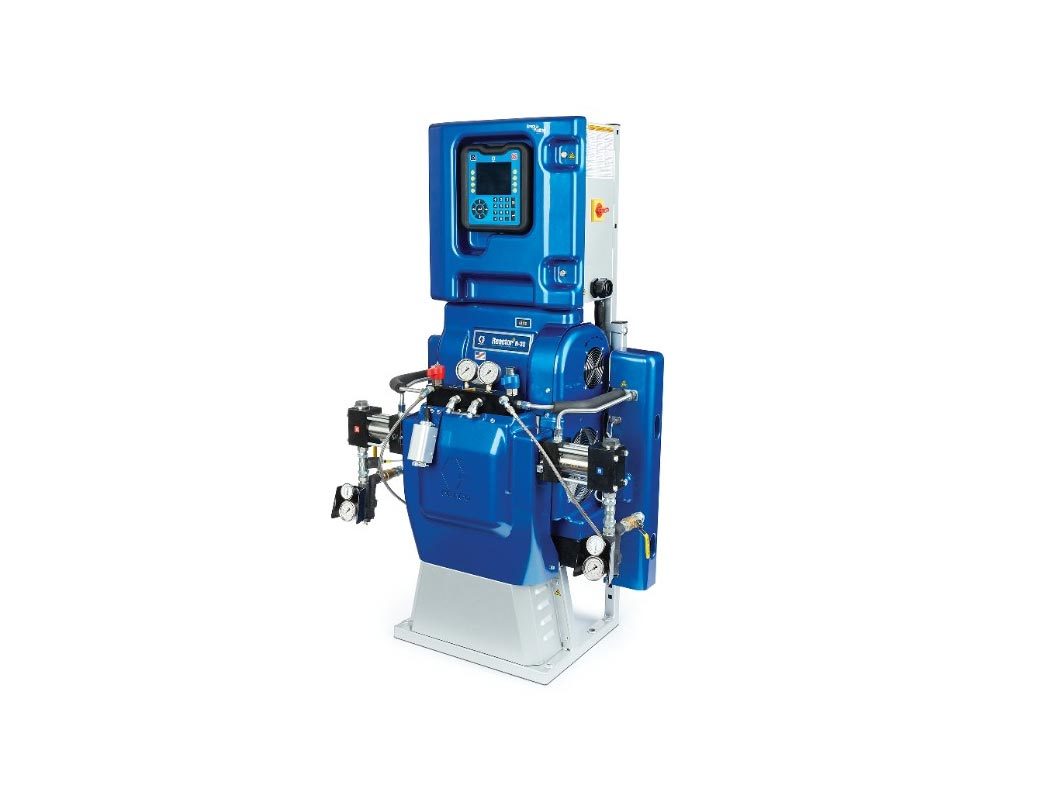

Next-generation technology for spray foam insulation
What a hydraulic system can do for you:
- Dependability - robust, durable, longest life spray system
- Reduce downtime - allows for a longer time in between required maintenance
- Increase daily productivity - capable of extremely high duty cycle
Easy to reach, conveniently-placed electronics
Advanced control technology
- Tracks, monitors, and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
Graco InSite Remote Reporting Technology
- FREE 6-month trial (Offer Expires December 24, 2015)
- Transmits real-time job activity you can view on your smartphone, tablet, or computer
- Included on Elite models
Quick and easy troubleshooting thanks to QR code shortcuts
- Results in less downtime
Sacrificial surge protector
- Protects your electronics against excessive power spikes
Three-year warranty
- Covers user display and control modules
- One of the best in the industry

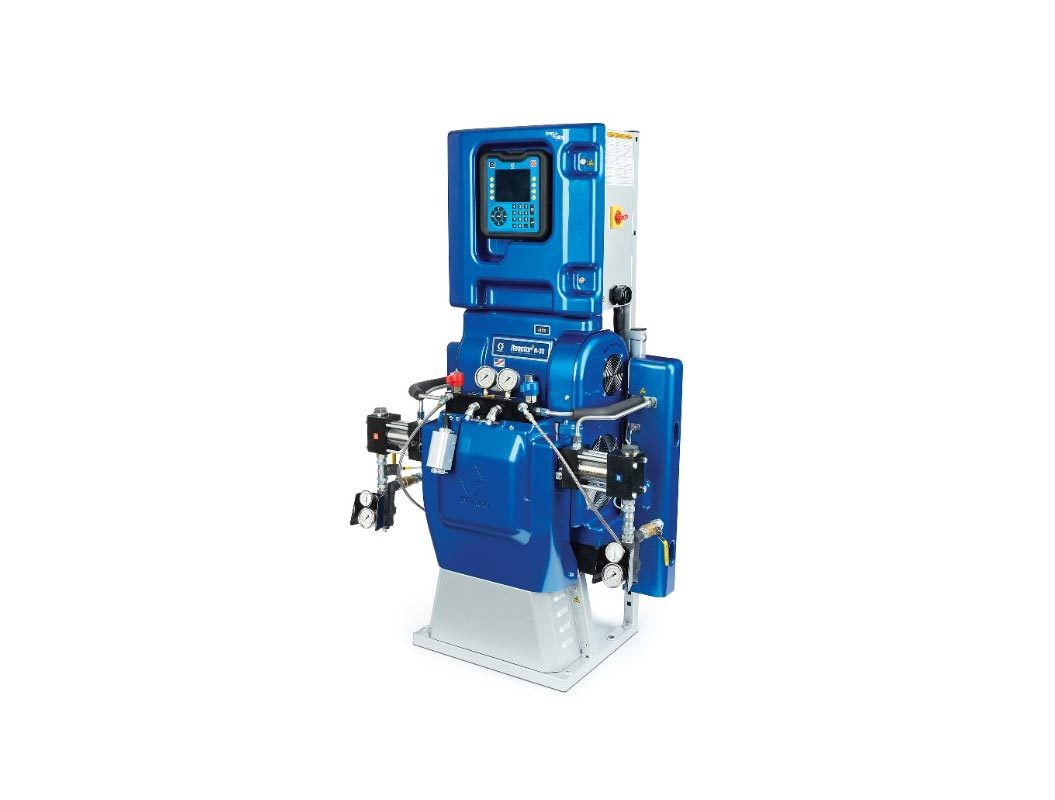

Next-generation technology for spray foam insulation
What a hydraulic system can do for you:
- Dependability - robust, durable, longest life spray system
- Reduce downtime - allows for a longer time in between required maintenance
- Increase daily productivity - capable of extremely high duty cycle
Easy to reach, conveniently-placed electronics
Advanced control technology
- Tracks, monitors, and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
Graco InSite Remote Reporting Technology
- FREE 6-month trial (Offer Expires December 24, 2015)
- Transmits real-time job activity you can view on your smartphone, tablet, or computer
- Included on Elite models
Quick and easy troubleshooting thanks to QR code shortcuts
- Results in less downtime
Sacrificial surge protector
- Protects your electronics against excessive power spikes
Three-year warranty
- Covers user display and control modules
- One of the best in the industry

A great way to expand or get into the spray business.

Graco has updated all the E-Series Electric Reactors
The Graco E-XP1 Reactor is electric driven state-of-the-art plural component proportioning system that gives superior performance, control, and accuracy. The Graco E-XP1 is designed to spray Polyurethane, Polyurethane Hybrids, and Polyurea coatings that require accurate temperatures and pressures necessary for the ultimate coating results.
Features and Benefits:
- Energy-efficient DC motor
- New Hybrid Heater Design utilizes direct and mass heating
- New Circulation Valves redesigned for Isocyanate materials
- New Modular Heater Electronics increase performance and reliability
- Digital User Controls
- Quick Knock Down Fluid Sections
- Sinusoidal motion smooths pump changeover found in traditional vertical pumping systems
- ISO pump lube system
- System diagnostics with error codes
- Automatic system shut down when user-defined pressure imbalance is detected
Applications:
- Waterproofing
- Tank Coating
- Potable water coatings
- Wastewater treatment
- Linestriping
- Manhole & sewer lining
- In-plant OEM
- Sprayed on Bedliners
Materials:
- Polyurea Coatings
- Polyurethane Hybrid Coatings
- Polyurethane Coatings

The next generation of Graco fast-set proportioners
The Graco E-20 Reactor is an electric-driven state-of-the-art plural component proportioning system that gives superior performance, control, and accuracy. The Graco E-20 designed to apply polyurethane foam materials that require accurate temperatures and pressures necessary for the ultimate foam results.
Features and Benefits:
- Energy-efficient DC motor
- New Hybrid Heater Design Utilizes direct and mass heating for increased Delta-T
- New Circulation Valves redesigned for Isocyanate materials
- New Modular Heater Electronics increase performance and reliability
- Digital User Controls
- Quick Knock Down Fluid Sections
- Sinusoidal motion smooths pump changeover found in traditional vertical pumping systems
- ISO pump lube system
- System diagnostics with error codes
- Automatic system shut down when user-defined pressure imbalance is detected

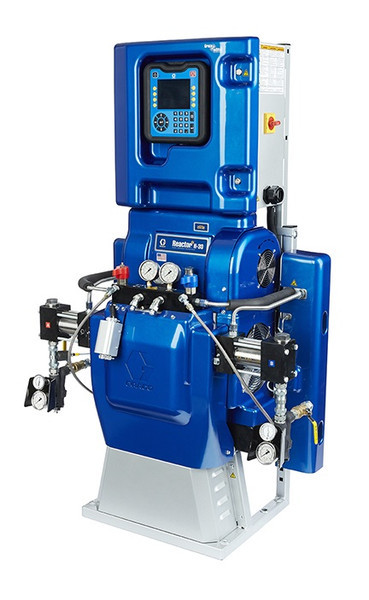

State-of-the-Art Technology with Graco E-20 Reactor
- Electric motors provide superior efficiency and improved performance
- Pressure relief valves offer quick and easy balancing of system pressures
- Easy-to-Service fluid sections reduce maintenance increase productivity
- High output heaters with maximum temperatures of up to 15,300 watts
- Data reporting verifies that the job was sprayed accurately
- Digital heat and pressure controls accurately program temperatures and pressures
- Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern
Graco E-20 Reactor...making ratio assurance and control simple and easy
Applications:
- Foam Roofing
- Residential
- Foam Insulation
- Rim & Band Joists
Materials:
- Polyurethane Foam

Top-quality and performance for spraying foam insulation
- Graco-engineered solution provides tested and proven reliability
- Three independent heat zones easily handle different chemical viscosities
- Maintains consistent output pressure for uniform spray pattern
- Easy to operate and maintain
The A-25 reactor maintains steady temperature set-points, even when you're spraying at maximum flow rates, resulting in better quality foam. Temperatures of the competitive model fluctuated as flow rates increased.
DataTrak Control (optional)
- The resettable counter tracks material usage
Three Heat Zones
- Three independent heat zones - ISO, Resin, and Hose Heat
- Provide accurate heat control for reliable spraying to handle different chemical viscosities
- Digital temperature controls
Recirculation Manifold
- A quick, easy way to balance system pressures
NXT Air Motor
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- Air valve provides smooth and rapid changeover
Hybrid Heater
- Provides better temperature control
Quick Knockdown Lower Pumps
- For easy disassembly and maintenance
ISO Pump Lube System
- Prevents isocyanate crystallization on the pump seal and shaft

Features:
- Maintains temperature setpoints for better yield
- Maintains consistent output pressure for uniform spray pattern
- Easy to operate and maintain
- Best choice for affordability and durability

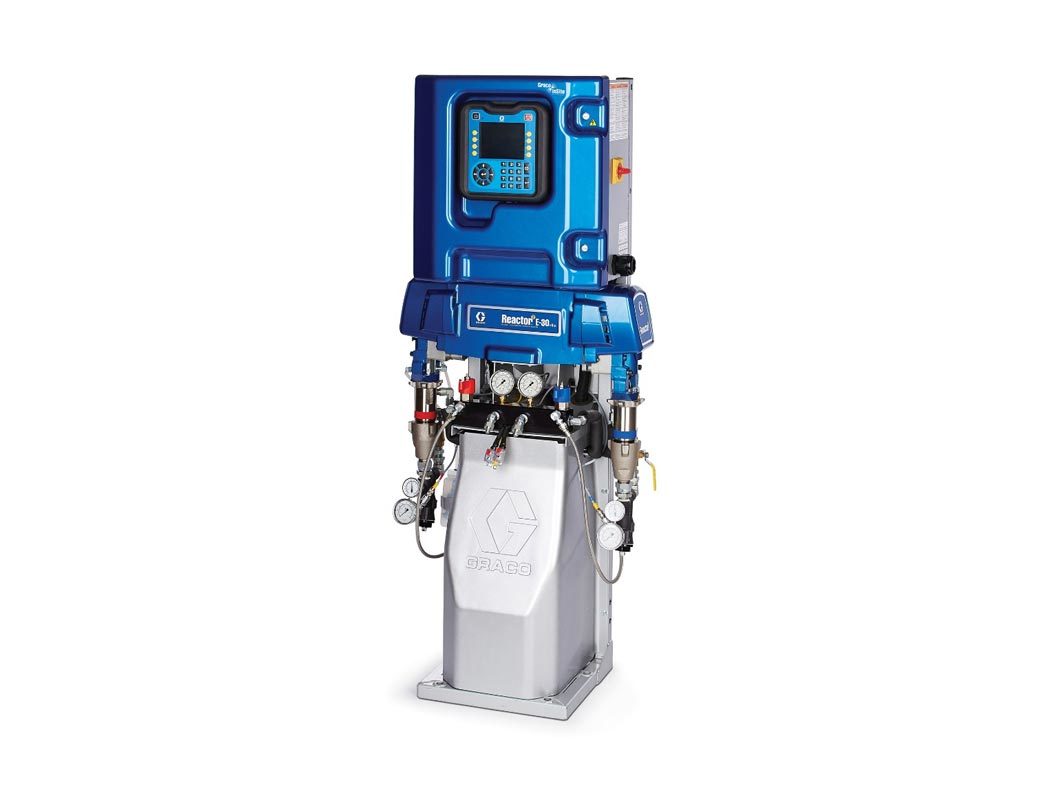

1. Advanced control technology
- Tracks, monitors, and saves project data
- Data can be downloaded onto a USB drive for further analysis
- Easy to view data display
- Stores up to 24 chemical recipes
- Drum level indicators
2. Graco InSite Remote Reporting Technology
- Transmits real-time job activity you can view on your smartphone, tablet, or computer
- Lets you control your business wherever you are
3. Troubleshooting made easy
- On-screen troubleshooting with QR code shortcuts to web-based advanced troubleshooting info
- Results in less downtime
4. Compact design
- 40% smaller footprint than a traditional Reactor E-30
5. Ergonomics
- Easy to reach, conveniently-placed electronics
6. Troubleshooting Y-strainer
- Analog temperature and pressure gauges
7. Sacrificial surge protector
- Protects your electronics against excessive power spikes
- Extra sacrificial surge protector included with Reactor 2 to get you back up and running immediately
8. Advanced circuit boards
- Handles power fluctuations
- Minimizes pressure fluctuations on pump changeover
- The result is a smooth, consistent spray performance similar to hydraulic systems
9. Brushless electric motor
- Improved control and performance
- No maintenance
- Longer life
10. Three-year warranty
- Covers user display module, control boards, and electric motor
- One of the best in the industry
- Graco InSite Remote Reporting Technology
- Inlet pressure and temperature sensor (interfaces with Graco InSite)
- Xtreme-Wrap Scuff Guard on heated hoses for Reactor 2 packages
Reactor 2 standard models include:
- Graco InSite upgradable (will not include inlet temperature and pressure)
- No inlet pressure and temperature sensor
- Standard scuff guard on heated hoses with Reactor packages

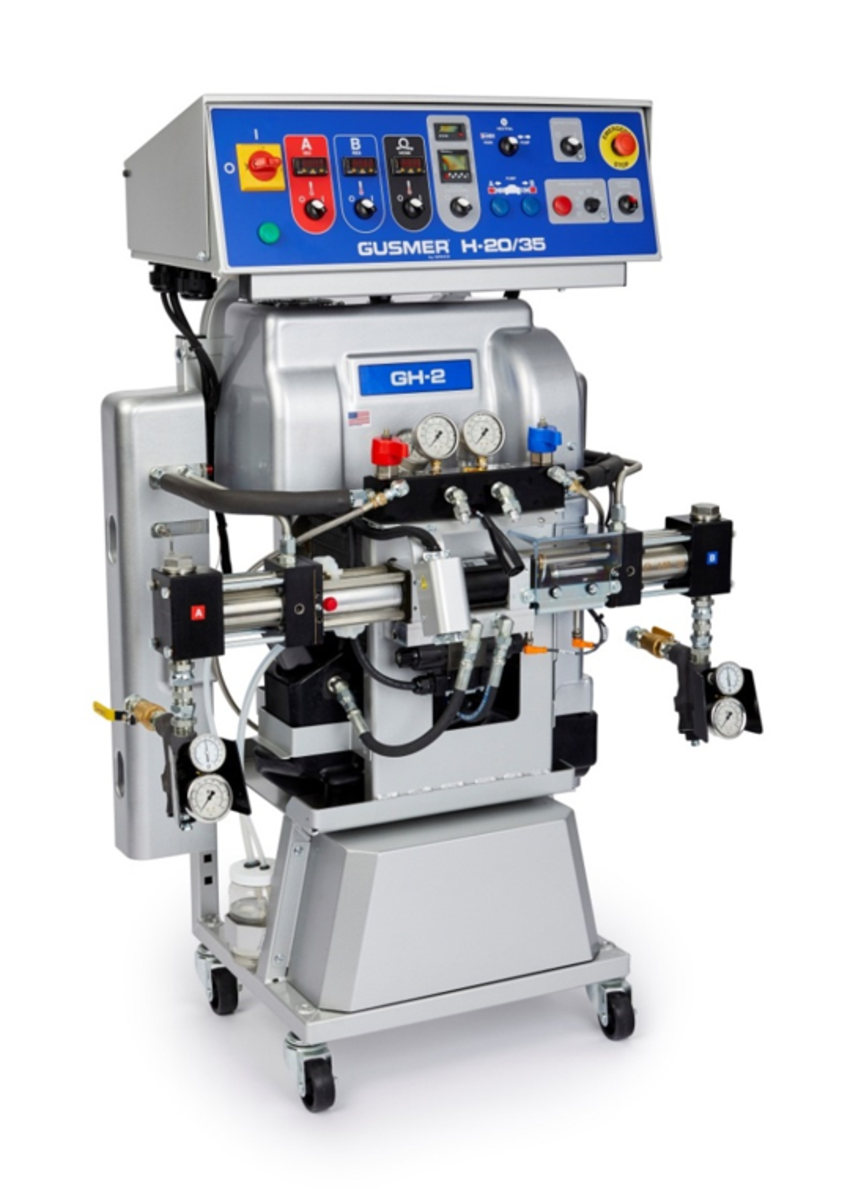

Gusmer H-20/35 system features easy access and service to the electrical cabinet. With standard off-the-shelf hardware, it's an easy-to-use and easy-to-maintain design.
GH-2 Model:
- Output: 28 lbs/min
- Max Working Pressure: 2000 psi
- Heater Wattage: 10kW heat
- Max Hose Length: 320'
GH-4 Model:
- Output: 45 lbs/min
- Max Working Pressure: 2000 psi
- Heater Wattage: 15.3kW heat
- Max Hose Length: 410'

Next-generation technology for spray foam insulation
What a hydraulic system can do for you:
- Dependability - robust, durable, longest life spray system
- Reduce downtime - allows for a longer time in between required maintenance
- Increase daily productivity - capable of extremely high duty cycle
Easy to reach, conveniently-placed electronics
Advanced control technology
- Tracks, monitors and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
Graco InSite Remote Reporting Technology
- FREE 6-month trial (Offer Expires December 24, 2015)
- Transmits real-time job activity you can view on your smartphone, tablet, or computer
- Included on Elite models
Quick and easy troubleshooting thanks to QR code shortcuts
- Results in less downtime
Sacrificial surge protector
- Protects your electronics against excessive power spikes
Three-year warranty
- Covers user display and control modules
- One of the best in the industry

Next generation technology for spray foam insulation
What a hydraulic system can do for you:
- Dependability - robust, durable, longest life spray system
- Reduce downtime - allows for longer time in between required maintenance
- Increase daily productivity - capable of extremely high duty cycle
Easy to reach, conveniently-placed electronics
Advanced control technology
- Tracks, monitors and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
Graco InSite Remote Reporting Technology
- Transmits real-time job activity you can view on your smart phone, tablet or computer
- Included on Elite models
Quick and easy troubleshooting thanks to QR code shortcuts
- Results in less downtime
Sacrificial surge protector
- Protects your electronics against excessive power spikes

Advanced features in a flexible package

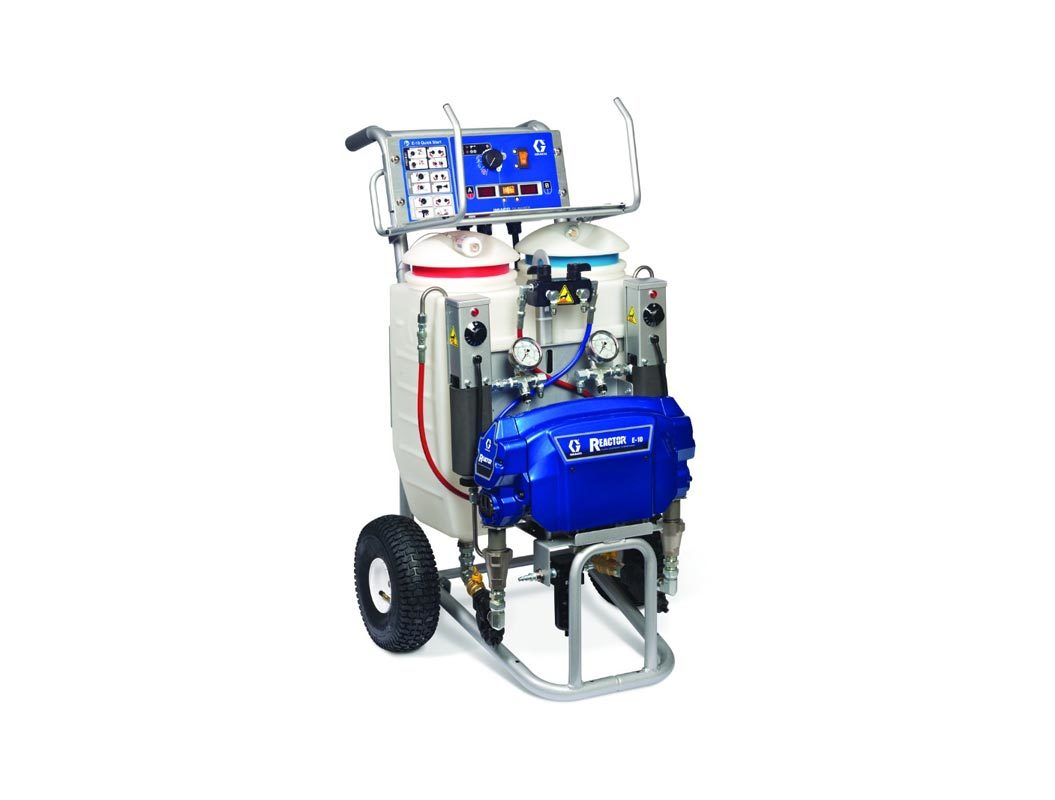

Graco's E-10 Reactor is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The E-10 Reactor sprayers are ideal for plural-component spray, joint-fill jobs, and touch-ups. With smart controls that are easy to set up and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.
Features and Benefits:
- Small size is ideal for on-site portability and hard-to-reach areas
- One-person operation saves time and money
- Use as an add-on to you existing spray business
- Versatile - switch from cold spray to hot spray to foam
- Saves 30% on material costs compared to disposable foam systems
Small ready-to-use systems with big results!
- Electric power is low draw and plugs into standard outlets
- Intuitive start, stop, and digital temperature display with single knob operation
- Pressure balance valves give you quick and easy balancing of system pressures
- Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern
- Easy-to-service fluid section reduces maintenance and increases productivity
- An electric motor improves performance and reduces operating costs
- Self-contained translucent material tanks show you that you are spraying on-ratio
- Heaters and hose give you up to 2000 watts to pre-heat circulating material
Applications:
- Rim joists, roof patching, prep work, and window repair
- Concrete joint filling and flooring
- Small tank lining
- Industrial maintenance and small touch-up jobs
Materials:
- Polyurea, Polyurethane & Polyurethane Hybrid Coatings
- Polyurethane Foam
- Adhesives and Caulks

1. Advanced control technology
- Tracks, monitors, and saves project data
- Data can be downloaded onto a USB drive for further analysis
- Easy to view data display
- Stores up to 24 chemical recipes
- Drum level indicators
- Transmits real-time job activity you can view on your smartphone, tablet, or computer
- Lets you control your business wherever you are
3. Troubleshooting made easy
- On-screen troubleshooting with QR code shortcuts to web-based advanced troubleshooting info
- Results in less downtime
- 40% smaller footprint than a traditional Reactor E-30
5. Ergonomics
- Easy to reach, conveniently-placed electronics
6. Troubleshooting Y-strainer
- Analog temperature and pressure gauges
7. Sacrificial surge protector
- Protects your electronics against excessive power spikes
- Extra sacrificial surge protector included with Reactor 2 to get you back up and running immediately
8. Advanced circuit boards
- Handles power fluctuations
- Minimizes pressure fluctuations on pump changeover
- The result is a smooth, consistent spray performance similar to hydraulic systems
9. Brushless electric motor
- Improved control and performance
- No maintenance
- Longer life
10. Three-year warranty
- Covers user display module, control boards, and electric motor
- One of the best in the industry
- Graco InSite Remote Reporting Technology
- Inlet pressure and temperature sensor (interfaces with Graco InSite)
- Xtreme-Wrap Scuff Guard on heated hoses for Reactor 2 packages
Reactor 2 standard models include:
- Graco InSite upgradable (will not include inlet temperature and pressure)
- No inlet pressure and temperature sensor
- Standard scuff guard on heated hoses with Reactor packages

Next generation technology for spray foam insulation
What a hydraulic system can do for you:
- Dependability - robust, durable, longest life spray system
- Reduce downtime - allows for longer time in between required maintenance
- Increase daily productivity - capable of extremely high duty cycle
Easy to reach, conveniently-placed electronics
Advanced control technology
- Tracks, monitors and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
Graco InSite Remote Reporting Technology
- Transmits real-time job activity you can view on your smart phone, tablet or computer
- Included on Elite models
Quick and easy troubleshooting thanks to QR code shortcuts
- Results in less downtime
Sacrificial surge protector
- Protects your electronics against excessive power spikes

The E-8p Reactor Portable Plural-Component Sprayer is among the first portable, professional foam insulation systems that produce foam for air-sealing existing homes. In fact, it's the first system that's designed specifically for new no-heat polyurethane foam formulations. It produces a proven air-seal solution that's in demand by homeowners who want energy-efficient homes.
Expand your business
Become more competitive in today's market with equipment designed for the remodeling or small foam job. Whether you're expanding your existing insulation application opportunities or just starting your business, the E-8p Reactor provides a quick return on investment. As a touch-up system, the E-8p Reactor frees up larger rigs for medium and large jobs while enabling you to finish the job afford-ably.
Portable, lightweight, and easy to move.
Haul in in your van, pickup, or car. Take it anywhere - through narrow doorways or halls, even up narrow stairways of older homes. The E-8p Reactor's compact design easily fits in tight areas so you can spray foam with ease. Since no heaters are required, the E-8p Reactor is small, lightweight, and compact.
Designed for existing home environments
The compact design is unobtrusive. Simply plug it into a standard residential outlet. Material is drawn from handy no-spill five-gallon pails. No feed pumps needed.
A quick return on your investment
Many small projects that are ordinarily completed with froth kits can now be accomplished more economically with the E-8p Reactor and no-heat polyurethane foams. In fact, froth kits can cost up to three times the cost of five-gallon pails of no-heat foam polyurethane materials.
Benefits:
- Haul it in your van or pickup truck
- Easy to move up and down stairs
- Telescoping handle and wheels make it easy to maneuver at the job site
- Plugs into a standard residential outlet (120 VAC, 15 amp)
- Weighs just about 96 pounds (44 kg)
- Easy to read pressure gauges ensure you're spraying on-ratio and delivering high-quality foam
- An economical alternative to froth kits
Applications:
- Rim joists in existing homes
- Attics in existing homes - as an air barrier under blown-in insulation
- Alternative to froth kits
- Backup system for spray rig owners
- Touch-up projects in tight areas
- HVAC spray sealing of approved ductwork
- Roofing applications - patching, applying select roofing adhesives

Grow your business with polyurea projects
If you'd like to add polyurea projects to your lineup, the Graco Reactor E-10hp High-Pressure Proportioner is a smart, affordable investment that can help your business grow.
The Graco Reactor E-10hp provides the high-pressure power and performance you need to spray polyurea coatings. It's lightweight and portable - and runs on residential power so you don't need to invest in a generator.
Fast start-up times
With the system's innovative boost heat and insulated tanks, the material heats up fast so you're up and running sooner. In fact, you're ready to spray in 20 minutes*, compared to over an hour startup time on a standard Graco Reactor E-10.
*With a 240V model.
The boost heat uses the extra available power from the motor circuit when the machine is recirculating and applies that extra power to additional heater rods. This means that during recirculation mode, you have additional total heater amperage for faster material heating.
Features:
- Ideal for small to medium projects such as terraces, pools, balconies, tanks, truck bedliners, secondary containment, and waterproofing
- Heats material fast for better productivity
- Portable, compact, and easy to maneuver
- Easy to use
- Uses standard residential electrical outlets - no generator needed
- Affordable investment - compared to a standard Reactor which requires a generator and spray rig
